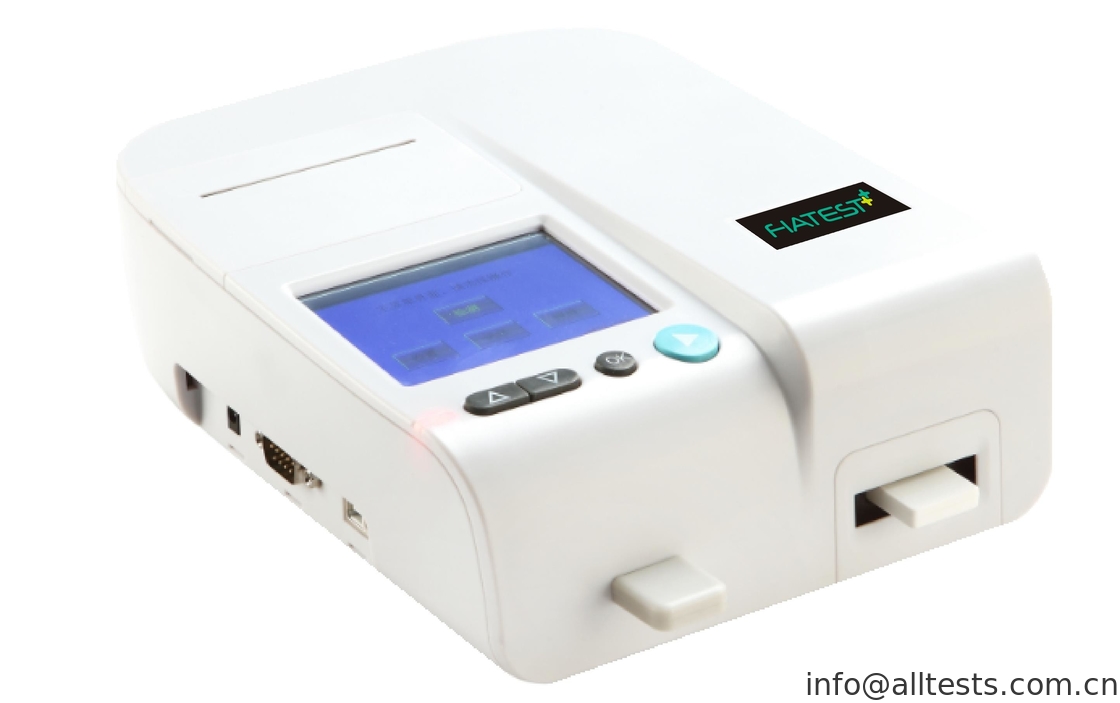

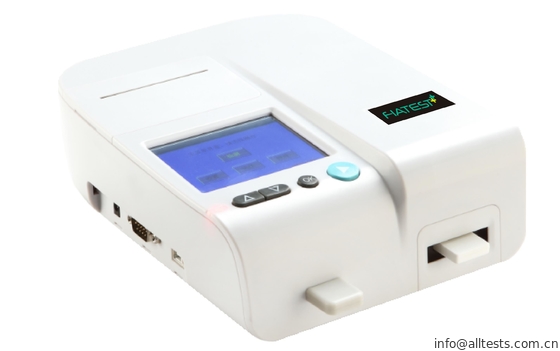

Fluorescence Immunoassay Analyzer

Basic Information
Place of Origin: China
Brand Name: Alltest
Certification: CE
Model Number: AFR-100
Delivery Time: 20Days
Principle: Fluorescence Immunoassay · Test Formats: Cassette
Specimen: Ref: Package Insert Read Time: < 10 Seconds
Measurement: Quantitative, Qualitative Weight: < 1.0 Kg
High Light:

hiv home testing kits

,

home hiv test kits

Intended Use

Fluorescence Immunoassay Analyzer is an analyzer that based on detection of fluorescence emitted during an immunoassay with antigen-antibody interaction. The analyzer is designed to provide quantitative or qualitative test results by the examination of human samples with specific in vitro diagnostic test units including Inflammation Markers, Tumor Markers, Nephrology, Diabetes, Cardiac Markers, Coagulation, Endocrinology, Autoimmunity, Infectious Diseases and etc. Fluorescence Immunoassay Analyzer offers the advantages of high accuracy, strong stability and fast results. Fluorescence Immunoassay Analyzer should be used only with in vitro diagnostic tests manufactured by Hangzhou AllTest Biotech CO., Ltd as per package insert provided with specific test kits used. Fluorescence Immunoassay Analyzer is not expected to provide accurate results, even if products manufactured by other companies are claimed to be based on the same technology.

For professional use and use at Point of Care.

Please read this User Manual carefully before operation.



Scope of Application

Fluorescence Immunoassay Analyzer works with certain fluorescent reagents. It’s for in vitro diagnosis professionals and Point of Care Use. It may be used in central laboratories of medical institutions, outpatient or emergency departments, clinical departments or medical services (such as community health centers), or medical center, etc. It can also be used in research laboratories.



Technical Specification

· Principle Fluorescence Immunoassay
· Test formats Cassette
· Measurement Quantitative, Qualitative
· Read Time < 10 seconds
· Test Time Ref: Analytes
· Specimen Ref: Package Insert

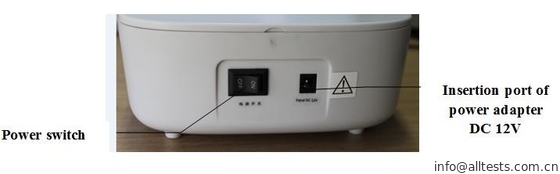

· Power Source DC 12V
· Dimensions 173 mm (Width) × 210 mm (Depth) × 75.8 mm (Height)
· Weight < 1.0 kg
· OS Windows-Compatible proprietary program
· Excitation light source LED
· Spectrum

Excitation spectrum: Mean wavelength λ0=365nm

Reception spectrum: Mean wavelength λ1=610nm

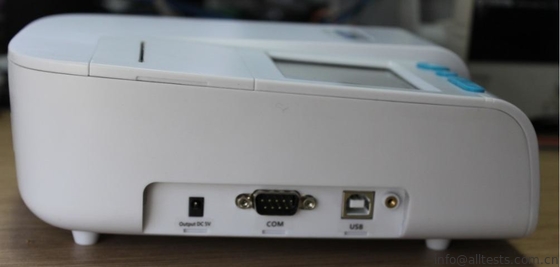

· Connecting Ports RS232, USB
· Storage Conditions Temperature: -10-40℃, relative humidity: 20% to 90%, atmospheric pressure: 86 to 106 kPa; and in a ventilated environment free of corrosive gases. Measures should be taken to avoid moisture, and prevent impact and severe vibration during transport.
· Operating Conditions 4-30℃
· Printer Built-in thermal printer
