| Place of Origin: | China |
|---|---|
| Brand Name: | EZCHEK |
| Certification: | ISO13485 |
| Model Number: | AUR-200 |
| Minimum Order Quantity: | N/A |
| Price: | negotiation |
| Packaging Details: | 1T |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | Ex works |
| Format: | EZCHEK Urine Analyzer | Accuracy: | >99.9% |
|---|---|---|---|
| Certificate: | ISO 13485 | Storage: | 2-30℃ |
| High Light: | Urine Accurate Analyzer,rapid test reader |
||

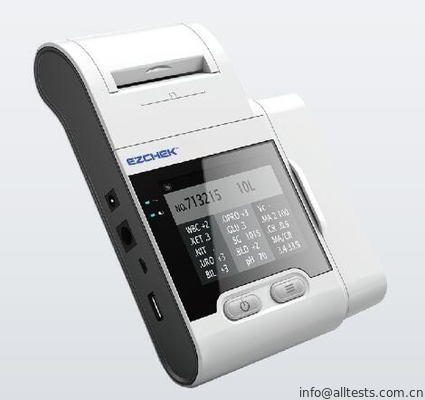

EZCHEK Urine Chemistry Analyzer Rapid Test Reader Fast Reading For Quick Results
EZCHEKTM Urine Analyzer
A Smart Choice for Quick Results
Intended Use
EZCHEKTM Urine Analyzer is a semi- quantitative assessment of urine by using dry chemical methods. According to the principle of photoelectric colorimetry, urine analyzer is used to evaluate the content of biochemical components in the urine through the change of color caused by the reaction of the reagent and urine biochemical components.
Scope of Application
EZCHEKTM Urine Analyzer works with certain urinalysis reagents strips manufactured by Hangzhou Alltest Biotech CO., Ltd. for the semi-quantitative detection of following analytes in urine:
| Abbr. | Parameter | Abbr. | Parameter | Abbr. | Parameter |
| ASC | Ascorbic Acid | LEU | Leukocytes | CRE | Creatinine |
| BIL | Bilirubin | NIT | Nitrite | PRO | Protein |
| BLO | Blood | pH | pH | URO | Urobilinogen |
| GLU | Glucose | SG | Specific Gravity | ALB | Microalbumin |
| KET | Ketone | CA | Calcium |
It's for in vitro diagnosis professional use and use at Point of Care only. It may be used in central laboratories of medical institutions, outpatient or emergency departments, clinical departments or medical services (such as community health centers), or medical center, etc. It can also be used in research laboratories.
Technical Specification
| Specification | Technical Parameters | ||||
| Testing Principles | Through reflection photometer to evaluate the color change of urinalysis strip, then calculate the concentration of related items and output semi-quantitative results | ||||
| Testing Wave Length | 470nm,525nm,625nm | ||||
| Testin Seed | 60 samples / hour | ||||
| Report Method | LED; Serial Output；Internal 57mm Micro Heat-sensitive Printer,Chinese and English | ||||
| Display | 320x240LED； | ||||
| Input Method | Touch Screen； | ||||
| Report Storage | 10000 Reports； | ||||
| External Interface | Standard RS-232,can be connected with PC； | ||||
| Working Voltage | AC 220V±22V 50Hz±1Hz DC5.85V±0.45V (AA×4) | ||||
| Power consumption of Input | 35 VA； | ||||
| Dimensions | 200mm×137mm×52mm | ||||
| Weight | 600g | ||||
| Repeatability | (CV,%)≤1.0 | ||||
| Accuracy | Less than one grade compared to the reference value | ||||
| Stability | Variable coefficient(CV,%)≤1.0 | ||||
| Contamination | The negative samples test results will not showed the positive after the test of the highest positive sample |
Working and Storage Condition
| Parameters | Working condition | Storage condition |
| Temperature | 10℃~30℃ | -20℃~50℃ |
| Relative Humidity | ≤80% | ≤93% |
| Atmospheric Pressure | 76-106Kpa | 76-106Kpa |
| Working Condition | Stable Table, avoid of direct strong light and strong electromagnetic interference source | Clean, Ventilative, Stable |
| Ca.No. | Product Description | Pack |
| AUR-200 | EZCHEKTM Urine Analyzer | 1T |
