Malaria P.f. / P.v. Rapid Test Cassette , Rapid Diagnosis Test

Basic Information
Place of Origin: China
Brand Name: AllTest
Certification: CE, ISO13485
Model Number: IMPV-402
Minimum Order Quantity: N/A
Price: Negotiation
Packaging Details: 20cassette/box Malaria P.f P.v. Cassette 3
Delivery Time: 2-4 Weeks
Payment Terms: Ex works
Supply Ability: 10 M tests/month
Specimen: Whole Blood Feature: Precise,accurate And High Sensitivity
Format: Cassette Shelf Life: 24months
OEM: Available Accuracy: 99.2%
High Light:

rapid test kit


diagnostic tests for infection

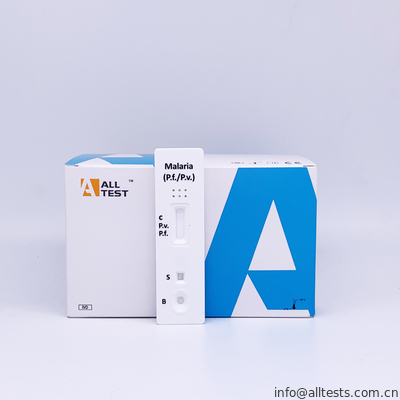

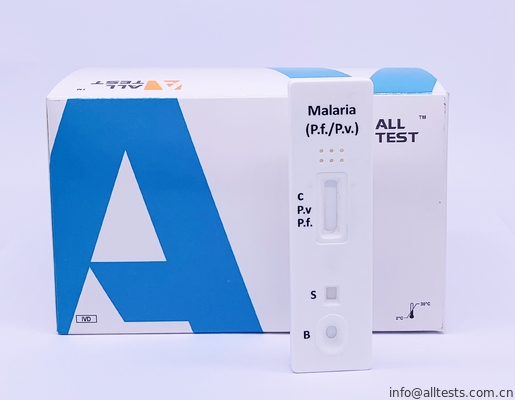

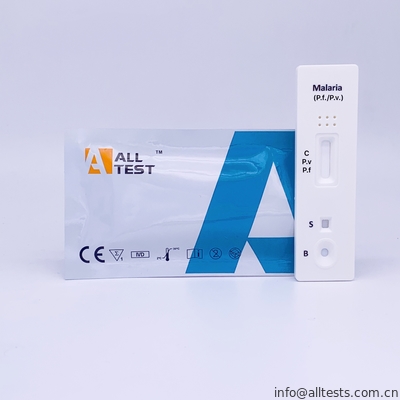

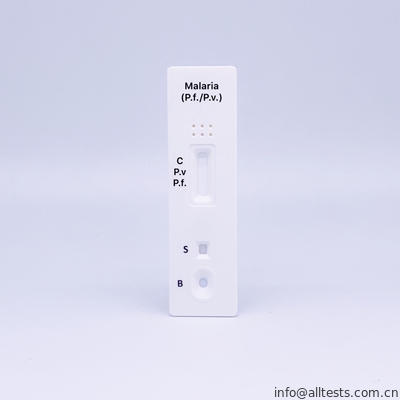

 Malaria P.f. / P.v. Rapid Test Cassette , Rapid Diagnosis Test



The Malaria P.f./P.v. Rapid Test Cassette (Whole Blood) is a rapid chromatographic immunoassay for the  qualitative detection of two kinds of circulating plasmodium falciparum(P. falciparum (P.f.) and P. vivax (P.v.))  in whole blood.


Malaria is caused by a protozoan which invades human red blood cells.1 Malaria is one of the world's most prevalent diseases. According to the WHO, the worldwide prevalence of the disease is estimated to be 300-500 million cases and over 1 million deaths each year. Most of these victims are infants, young children. Over half of the world's population lives in malarious areas. Microscopic analysis of appropriately stained thick and thin blood smears has been the standard diagnostic technique for identifying malaria infections for more than a century.2
The technique is capable of accurate and reliable diagnosis when performed by skilled microscopists using defined protocols. The skill of the microscopist and use of proven and defined procedures, frequently present the greatest obstacles to fully achieving the potential accuracy of microscopic diagnosis. Although there is a logistical burden associated with performing a time-intensive, labor-intensive, and equipment-intensive procedure such as diagnostic microscopy, it is the training required to establish and sustain competent performance of microscopy that poses the greatest difficulty in employing this diagnostic technology. The Malaria P.f./P.v. Rapid Test Cassette(Whole Blood) is a rapid test to qualitatively detect the presence of P. falciparum - specific HRP-II and P. vivax (P.v.). The test utilizes colloid gold conjugate to selectively detect P.f-specific and P. vivax (P.v.)-specific antigensin whole blood.
How to use?

Allow the test, specimen, buffer and/or controls to reach room temperature (15-30°C) prior to testing.
1. Bring the pouch to room temperature before opening it. Remove the test cassette from the sealed pouch and use it as soon as possible.
2. Place the cassette on a clean and level surface.
For Whole Blood specimen:
· Use a pipette: To transfer 5 μl of whole blood to the specimen well, then add 3 drops of buffer (approximately 180 μl).
· Use a disposal specimen dropper: Hold the dropper vertically, draw the specimen up to the Fill Line as shown in illustration below (approximately 5 μl). Transfer the specimen to the specimen well, then add 3 drops of buffer (approximately 180 μl), and start the timer.
3. Wait for the colored line(s) to appear. Read results at 10 minutes. Do not interpret the result after 20 minutes.

Malaria P.f. / P.v. Rapid Test Cassette , Rapid Diagnosis Test 0
(Please refer to the illustration above)
POSITIVE:* Two or Three distinct colored lines appear.
P. falciparum or mixed malaria infection :one line appears in the control region, one line appears in P.v. line region and one line appears in P.f. line region. P. falciparum infection: one line appears in the control region, and one line appears in P.f .line region.
Non-falciparum Plasmodium species infection :one line appears in the control region and one line appears in P.v. line region.
*NOTE: The color intensity of P.f. or P.v. test lines may vary depending on the concentration of antigens, viz., HRP-II or P. vivaxLDH present in the specimen.
NEGATIVE: Only one colored line appears in the control region.
INVALID: Control line fails to appear. Insufficient specimen volume or incorrect procedural techniques are the most likely reasons for control line failure. Review the procedure and repeat the test with a new test device. If the problem persists, discontinue using the test kit immediately and contact your local distributor.

Cat. No. Product Description Specimen Format Kit Size Cut-Off Status
IMPV-402 Malaria P.f./P.v.Rapid Test Cassette WB Cassette 25 T See Insert CE
