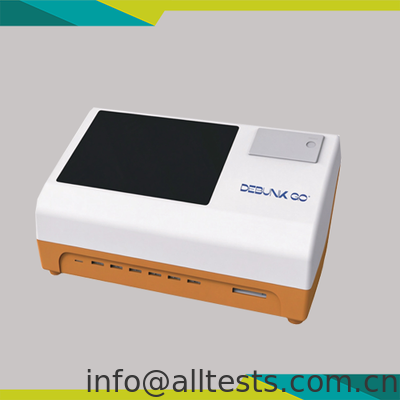

Fluorescence Immunoassay Analyzer with 10.1-inch LCD Touch Screen, Built-in Thermal Printer, and Six Single-Test Channels Plus One Multi-Test Channel

Name: Fluorescence Immunoassay Analyzer with 10.1-inch LCD Touch Screen, Built-in Thermal Printer, and Six Single-Test Channels Plus One Multi-Test Channel
Brand: Hangzhou AllTest Biotech CO.,LTD
SKU: AFR-401
Price: 0.25 USD
Availability: InStock

Brand Name:	Alltest
Model Number:	AFR-401

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

10.1-inch LCD Fluorescence Immunoassay Analyzer

Built-in Thermal Printer FIA Analyzer

Six Single-Test Channel Fluorescence Immunoassay Analyzer

Product Description

The Fluorescence Immunoassay Analyzer detects fluorescence signals generated by antigen-antibody immune reactions. It is designed for the qualitative and quantitative detection of human specimens using specific in vitro diagnostic test kits, covering Inflammation Markers, Tumor Markers, Nephrology, Diabetes, Cardiac Markers, Coagulation, Endocrinology, Autoimmunity, Infectious Diseases, Drugs of Abuse, etc.

Product Information:

Cat.No.: AFR-401

Format: Analyzer

Kit Size: 1 Unit

Storage Temperature: 5 °C - 45 °C

Technical Specification
Principle	Fluorescence Immunoassay	Weight	6kg
Test Formats	Cassette	Memory	10,000 records
Measurement	Quantitative, Qualitative	Operating Temperature	10-30°C
Read Time	< 20 s for each window	Relative Humidity (RH)	≤85%
Test Time	Refer to the specific package insert	Excitation/Emission	365/610 (nm)
Specimen	Refer to the specific package insert	Printer	Built-in Thermal Printer
Display Dimensions	10.1-inch color LCD	Test Channels	Six single-test channels; one multi-test channel.
Power Supply	DC 24V 4A	Connecting Ports	COM port x1, USB ports x4, LAN port x1
Working Voltage	AC 100-240 V, 50/60 Hz	Mains supply voltage	±10%
Maximum Input Power	200 VA	Overvoltage Category	II
Dimensions	460 mm (L) x 227 mm (W) x 245 mm (H)	Pollution Degree of the	2
Product Advantages High Accuracy (Stringent Quality Control Monitoring & System Check Function) User-Friendly (Simple Plug & Play Operation, 10.1" LCD Touch Screen Easy Operation (Less Training Required) High Efficiency (Batch Testing, 7 Tests in One Go. Six single-window channels, one multi-window channel) Time-saving (Reading Time less than 20 Seconds) Get Printing Test Reports Instantly (Built-in Thermal Printer) LIS/HIS Compatibility Available Strong Stability Extensive Test Menu Automated Recognition (Automatically identifies QR codes on cassettes) Dual optional calibration (ID card mode & card-free mode)
