Brand Name: | ALLTEST |
Model Number: | ACHR-100/100ST |

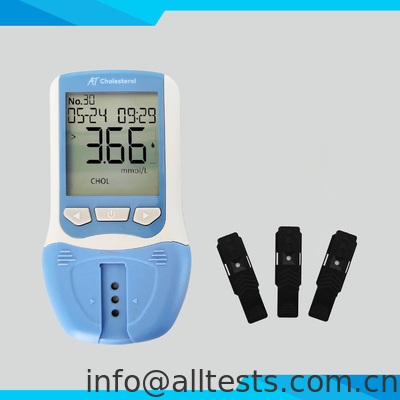

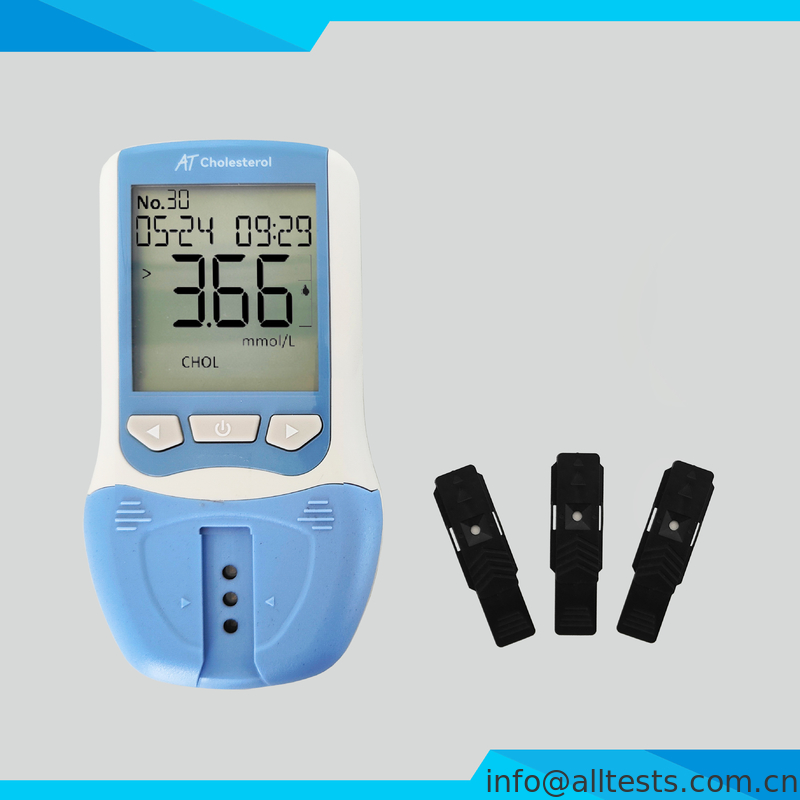

The Cholesterol meter is designed for the quantitative detection of the concentration of Total Cholesterol (CHOL), High-density Lipoprotein Cholesterol (HDL) and Triglyceride (TRIG) in human whole blood, serum and plasma based on the principle of light reflection with the use of the cholesterol test strips, as an aid to check the risk of heart disease and atherosclerosis (hardening, narrowing and blockage of blood vessels), and to predict the risk of cardiovascular disease. For near-patient and laboratory professional in vitro diagnostic use only.
Quick results in 2 minutes
Easy and convenient of use
High accuracy
Methodology | Reflectance Photometer | Test Time | ≤ 120 s |
Measurement Range | CHOL: 2.59-12.93 mmol/L(100-500 mg/dL) HDL: 0.39-2.59 mmol/L(15-100 mg/dL) TRIG: 0.51-7.34 mmol/L(45-650 mg/dL) | Specimen | Whole blood/Serum/Plasma |
Specimen Volume | 35 μL(3 in 1 test strip) 10 μL(Single test strip) | Power Source | 4 AAA Batteries |
Units of Measure | mg/dL or mmol/L | Units of Time | 12 H or 24 H |
Memory | 999 | Automatic Shut Off | 5 minutes after the last action |
Meter Dimension | 135.3 mm*73.7 mm*27 mm | Display Size | 50 mm*45 mm |
Weight (without Batteries) | Approx. 122g | Meter connectors | USB cable for Data Transfer or Power (optional) |
