products details

Home Products

EZDitell Cup Reader Read The Results Of The DOA Urine Cup Photoelectric Conversion

Name: EZDitell Cup Reader Read The Results Of The DOA Urine Cup Photoelectric Conversion
Brand: Hangzhou AllTest Biotech CO.,LTD
SKU: ACR-100
Price: 0.25 USD
Availability: InStock

Brand Name:	ALLTEST
Model Number:	ACR-100
MOQ:	N/A
Price:	negotiation
Supply Ability:	10 M tests/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

EZDitell Cup Reader, Read The Results Of The DOA Urine Cup , Photoelectric Conversion

Cat No:

ACR-100

Format:

Cup Reader

Certificate:

Storage Temperature:

15-30°C

Touch Screen:

7 Inches

Read Time:

1-2.5 Minutes

Excitation Light Source:

LED

Packaging Details:

1 Unit

Supply Ability:

10 M tests/month

Highlight:

EZDitell Cup Reader

Photoelectric Conversion Cup Reader

DOA Urine Cup Reader

Product Description

EZDitell Cup Reader, read the results of the DOA urine cup , Photoelectric Conversion

Principle:	Photoelectric Conversion
Test formats:	Cup
Touch Screen :	7 inches
Measurement :	Qualitative
Read Time :	1-2.5 minutes (Depends on the placement of QR code)
Power Source :	DC 12V, 2A
Dimensions :	221 mm (length) × 215 mm (Width) × 165 mm (Height)
Weight :	< 1.5 kg
Mains supply voltage fluctuations :	±10%
Overvoltage category :	Ⅱ
Pollution Degree :	2
Excitation light source :	LED
Connecting Ports :	LAN Port, 4 USB Ports
Storage Conditions :	Temperature: -10-60℃; relative humidity: 20% to 90%; atmospheric pressure: 86 to 106 kPa and in a ventilated environment free of corrosive gases.Measures should be taken to avoid moisture and prevent impact and severe vibration during transportation.
Operating Conditions :	15-30℃
Printer :	Built-in thermal printer
Place :	Indoor use, stable table, avoid of direct strong light and strong electromagnetic interference source.
Altitude :	Up to 2000m

Application:

Principle: Photoelectric Conversion

Test Format: Cup

Specimen: Urine

Reading Time: 5 minutes

Storage Temperature: 15-30°C

Cut Off: Ref. Analytes

Scope of Application

Anti-narcotics departments

Public security bureaus

Drug rehabilitation centers

Physical examination centers

National health inspection agencies

Clinical Research Organizations(CROs)

Employment screening Tourism companies

Advantages:

User-Friendly

7" touch screen

Fast result in display

Automatic print

Easy operation

Portable Design

Small footprint

Lightweight

LIS Compatibility

Intended Use

The Cup Reader is an instrument intended to read the results of the DOA urine cup digitally and provide the results in electronic and printable forms. It displays and prints the qualitative results only. The Reader is designed to gather the product information through QR Code and can be used exclusively with DOA Test cups provided by AllTest. The Cup Reader offers the advantages of high accuracy and fast results. This Reader should be used only with consumables manufactured by Hangzhou

AllTest Biotech Co., Ltd. as per package insert provided. The Cup Reader is not expected to be compatible with products manufactured by other companies even if products manufactured by other companies areclaimed to be based on the same technology. Accuracy of such test results, where other companies’ testing kits are used cannot be guaranteed.

EZDitell Cup Reader Read The Results Of The DOA Urine Cup Photoelectric Conversion 0

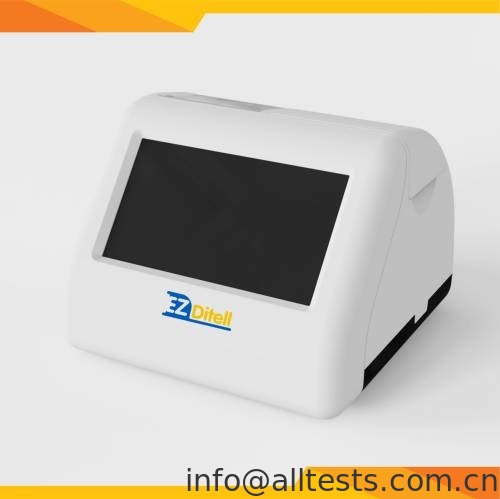

External View (Ref Fig 1, Fig 2)

The power switch is on the rear side of the reader. Adapter connection port, LAN Port and USB ports are on the left side of the reader for the purposes of connecting the reader with the mains socket, computer and/or Laboratory Information System, mouse and so on.
